Product Introduction



- 3-5 years working time (Every 24 hours auto ON/OFF & locate once)

- Auto ON/OFF & locate interval time can be changed by user SMS
- Special for rent vehicle / machine / instrument tracking
- DIY no installation (No wire / only battery power supply)
- Easy adsorbed on the metal with its strong 4 magnet pins
- Water-proof make it can be used in open air place
- Extra low standby (sleep) current (Lower than 1 uA)
- High capacity Li battery (6000mAH/3V, 4 x CR123A)
- Low self-discharging Li battery (4 x CR123A , 2%/Year)
- Geo-fence alarm can be noticed by sms or calling
- Device can not be detected by instrument (Normally sleep)
- Software GPRS air upgrade
- Auto download & configure APN & GPRS, Also can be set by SMS
- Cell ID locate (LBS locate) without GPS
- Located by GPS or LBS, Report by GPRS or SMS
- Multi working & report mode can be controlled by SMS
- Universal 4 band module & u-Blox (A-GPS) GPS module
- A-GPS (GSM Network Auxiliary Locate) make fast locate
- GSM and GPS antenna are embedded in the tracker
- 3 Authorized phone number can be set by SMS
- Auto send battery low information to authorized phone by SMS
- PC or mobile phone all can be used to check location or tracking
- Upload web or IP can be set by SMS
- Uploading tracking is controlled by timing
- Open GPRS protocol to client for adding protocol to platform
- GPRS protocol can be changed to work with client platform
- Visit website can track the car or display the history tracking
- Platform support iPhone & Android App locate / SMS locate
- History tracking can be saved on server over 6-12 months
- Life time free platform service charge (Our HK Server)
- World wide fast visiting high speed HongKong server
- Easy to use for tracking the rent asset, equipment, machine, vehicle etc.


Electronic Specifications:
- Normal Operation Temperature:    -20C to +55C
- Restricted Operation Temperature:    -35C to +70C
- Storage temperature:    -40C to +80C
- GSM Frequency:    850/900/1800/1900 MHz
- GSM & GPS Antenna:    Built-in
- GPS Channels:    32
- Locate Accuracy:    5~20m
- GPS Start Time (open sky):    Hot Start : 1 sec, Cold Start : 36sec
- Sleep Current:    <1 uA
- Locating Current:    <100mA
- Charge Voltage:    one time battery, can not charge
- Battery:    6000mAH (CR123A x 4)


- 3-5 years working time (Every 24 hours auto ON/OFF & locate once)
- Auto ON/OFF & locate interval time can be changed by user SMS
- Special for rent vehicle / machine / instrument tracking
- DIY no installation (No wire / only battery power supply)
- Easy adsorbed on the metal with its strong 4 magnet pins
- Water-proof make it can be used in open air place
- Extra low standby (sleep) current (Lower than 1 uA)
- Geo-fence alarm can be noticed by sms or calling
- Device can not be detected by instrument (Normally sleep)

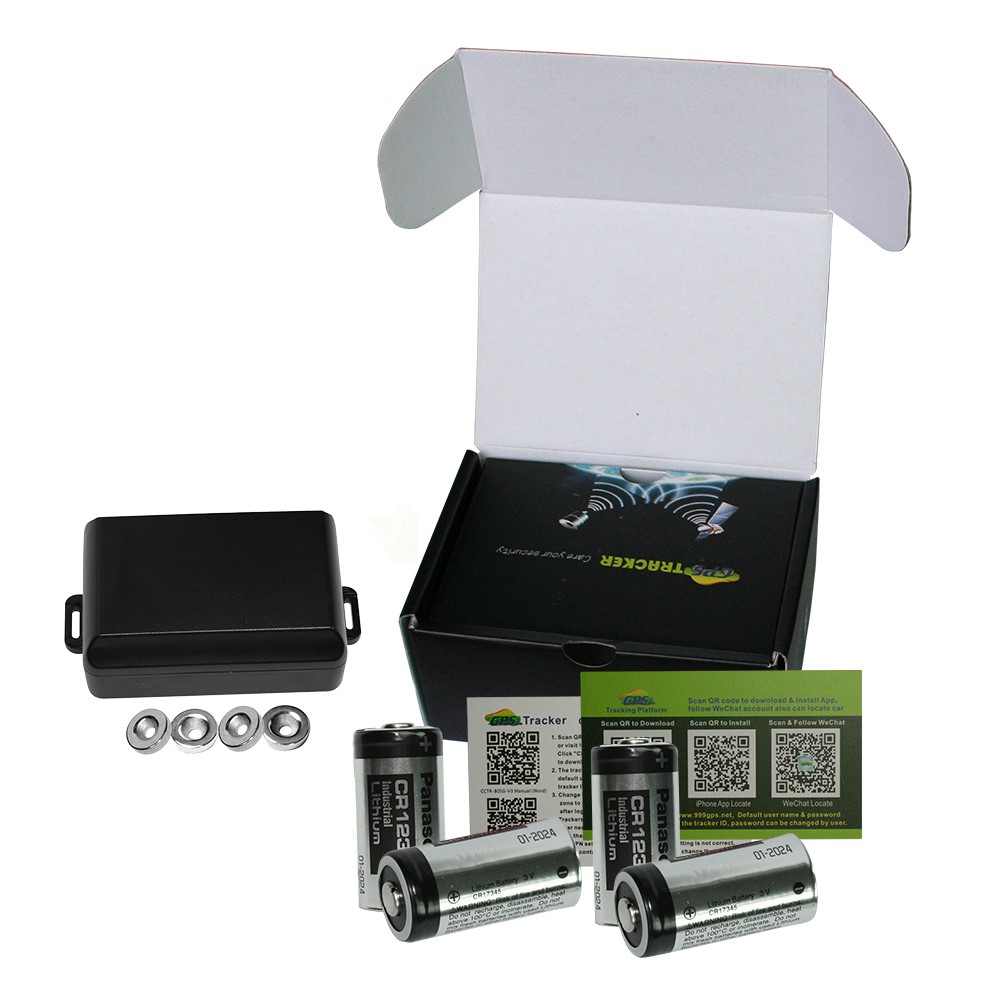

1 Main unit

CR123A battery X 4
1 manual (CD or Print).

Main Dimension: 77mm*53mm*29mm
Main weight: 90g
Package: color box
Package Dimension: 130mm*200mm*46mm    Weight: 0.33kg
Quantity Per Carton: 40set
Carton Dimension: 490mm*440mm*290mm     Weight: 14.5kg
